Shaft Alignment XT 550 without Display

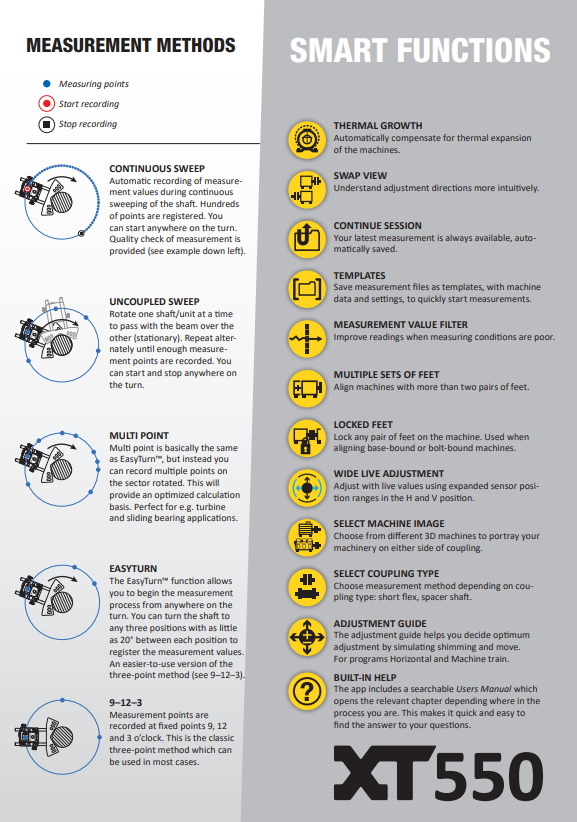

THERMAL GROWTH
Automatically compensate for thermal expansion
of the machines.

TEMPLATES
Save measurement files as templates, with machine
data and settings, to quickly start measurements.

SWAP VIEW
Understand adjustment directions more intuitively.

CONTINUE SESSION
Your latest measurement is always available, auto-
matically saved.

MEASUREMENT VALUE FILTER
Improve readings when measuring conditions are poor.

MULTIPLE SETS OF FEET
Align machines with more than two pairs of feet.

LOCKED FEET
Lock any pair of feet on the machine. Used when
aligning base-bound or bolt-bound machines.

WIDE LIVE ADJUSTMENT
Adjust with live values using expanded sensor posi-
tion ranges in the H and V position.

SELECT MACHINE IMAGE
Choose from different 3D machines to portray your
machinery on either side of coupling.

SELECT COUPLING TYPE
Choose measurement method depending on cou-
pling type: short flex, spacer shaft.

ADJUSTMENT GUIDE
The adjustment guide helps you decide optimum
adjustment by simulating shimming and move.
For programs Horizontal and Machine train.

BUILT-IN HELP
The app includes a searchable Users Manual which
opens the relevant chapter depending where in the
process you are. This makes it quick and easy to
find the answer to your questions.
